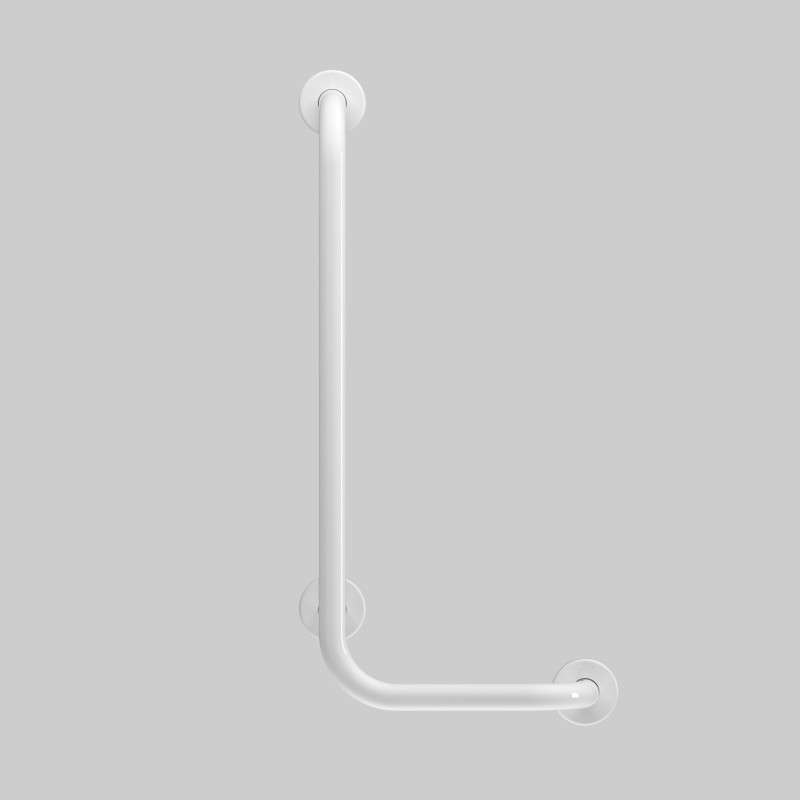

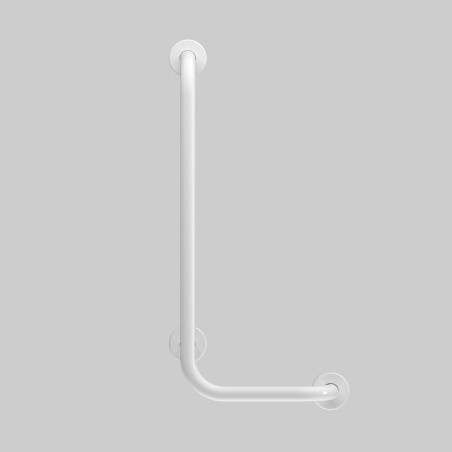

90° corner grab bars, powder-coated steel – left and right | BSD

Description
Product Details

Corner grab bar for accessible bathrooms – STANDARD series (powder-coated steel Ø32 mm)

An ergonomic corner grab bar for accessible bathrooms (L-shape) from the STANDARD series is a proven, safe and attractive solution for shower enclosures, bathtubs and toilet areas. Made of high-quality powder-coated steel Ø32 mm, this angled grab bar for people with special needs provides reliable two-directional support when standing up, sitting down and standing safely – for people with reduced mobility, seniors and patients.

Thanks to the durable powder coating and easy cleaning, this corner grab bar is ideal for homes, hospitals, care homes and public buildings. The universal design meets modern furnishing standards and the highest accessibility requirements.

To fit perfectly in any room, the grab bar is available in versions for left and right mounting and in a wide range of asymmetric and symmetric arm lengths (from B- 300-600 mm to A- 600-1200 mm).

Smart construction for maximum tightness and flexibility

The STANDARD series features a well-designed and extremely stable mounting construction. An M8 threaded sleeve is permanently welded into the ends of the tube. The wall rosettes are securely screwed on and additionally fitted with a sealing washer. This ensures an absolutely tight connection and reliably protects the construction against moisture in heavily used wet areas such as the shower or bathtub.

The system also gives full flexibility in the visible finish: the screw connection allows different covers. Choose standard rosettes with simple screw caps or a particularly elegant version with cover rosettes that hide the fixing completely.

Why choose the STANDARD corner grab bar?

Designed specifically as a corner grab bar for accessible bathrooms (L-shape)
Tube diameter Ø32 mm – ergonomic, secure grip
Available arm lengths: 300×600, 400×600, 400×800, 400×1000, 500×500, 500×700, 600×600, 600×800, 600×1000, 600×1200 mm
Mounting side: left or right
Material: carbon steel – robust and durable
Welded-in M8 threaded sleeve – for an extremely stable connection
Sealing washers included – watertight and safe installation
Finish of your choice: standard rosettes with screw caps or elegant cover rosettes
Load capacity up to 150 kg
Surface: powder-coated (white, black or other RAL colours to order)
Welding method: laser, TIG
Tube wall thickness: 1.5 mm (robust design)
2-year warranty
Made in Poland – EU quality and standards compliance

Reliable support in the shower and at the WC

A corner grab bar is essential wherever both horizontal and vertical support is needed. It is perfect as a shower grab bar: the vertical part allows a secure hold while standing and the horizontal part helps when getting up from a shower seat. Next to the WC, the L-shape also provides optimal leverage and safety.

Why powder-coated steel?

A corner grab bar made of powder-coated steel offers high strength, which is particularly important for angled constructions. The powder coating reliably protects the material against corrosion, is easy to clean, scratch-resistant and fits harmoniously into any bathroom. A corner grab bar for accessible bathrooms from the STANDARD series guarantees uncompromising safety, lasting tightness and a clean design in every sanitary room.

Dimensions and available sizes

Dimension A: longer arm – 500, 600, 700, 800, 1000 or 1200 mm
Dimension B: shorter arm – 300, 400, 500 or 600 mm
Tube diameter: Ø32 mm
Depth: 80 mm
Available size combinations: 10

Dimension B / Dimension A	500 mm	600 mm	700 mm	800 mm	1000 mm	1200 mm
300 mm	–	300 × 600 mm	–	–	–	–
400 mm	–	400 × 600 mm	–	400 × 800 mm	400 × 1000 mm	–
500 mm	500 × 500 mm	–	500 × 700 mm	–	–	–
600 mm	–	600 × 600 mm	–	600 × 800 mm	600 × 1000 mm	600 × 1200 mm

Dimension B always refers to the shorter arm and dimension A to the longer arm. Each size is available in a left and right version; cover and colour are selected in the product variants.
